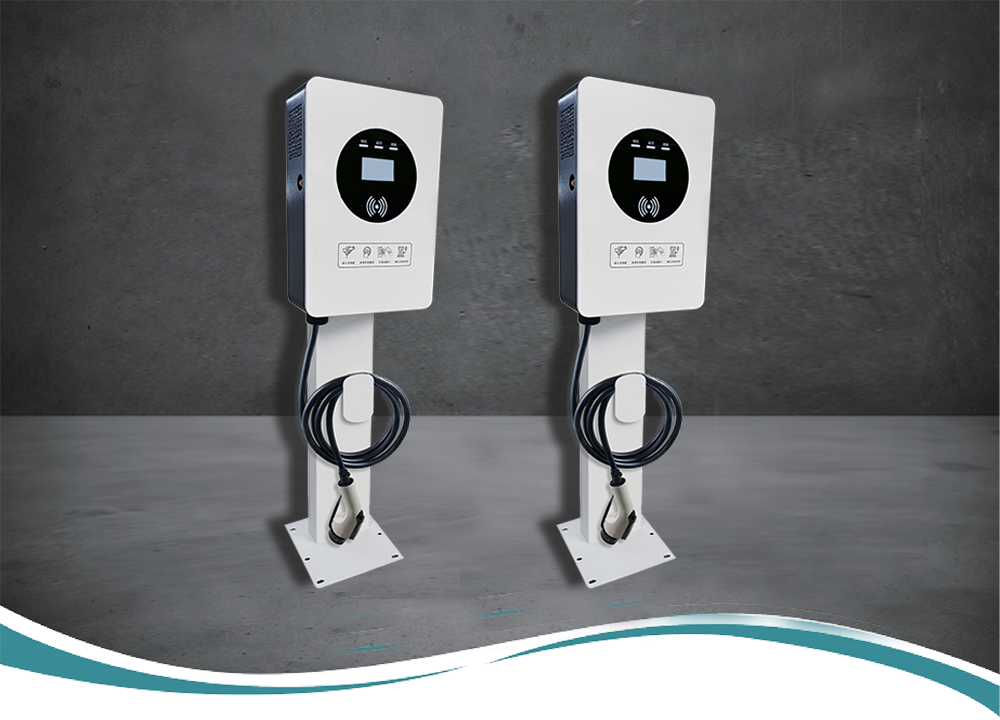

The all-new 7KW integrated AC charging pile redefines charging with minimalist aesthetics and hardcore technology Electric Experience. The device features a streamlined matte metal body, incorporating one-piece molding technology, combining IP54 protection with 20% volume compression advantages to meet installation needs in confined spaces. The smart touchscreen and breathing light interface, paired with a charging system supported by military-grade chips, deeply integrates safety and operational convenience, embodying "technological warmth" from appearance to core functionality.

1. Environmental Parameters

• Operating Temperature: -10°C ~ 55°C

• Storage Temperature: -20°C ~ 70°C

• Relative Humidity: 5%–95% RH (non-condensing)

• Altitude: ≤1500 m (no derating required in Malaysia)

• Ingress Protection: IP54

2. Electrical Parameters (Malaysia Grid: 230V AC / 50Hz)

• Nominal Input Voltage: 230 VAC ±10%

• Input Voltage Range: 207–253 VAC

• Frequency: 50 Hz

• Power Factor: ≥0.99

• THDi: ≤5%

• Output Voltage: 100–1000 VDC (continuously adjustable)

• Output Current: 32 A

• Output Power: 7 kW

• BMS Auxiliary Power: 12 VDC

• Peak Efficiency: 97.5%

• Noise Level: <50 dB

• Low Standby Power Consumption

3. Mechanical & Operation Parameters

• Installation: Wall-mounted / Floor-standing

• Connector Quantity: 1 gun

• Cable Length: Standard 5 meters

• Start Methods: Mini-program, RFID card, local button, VIN

• Display: 4.3-inch LCD (optional non-display version)

• Communication: CAN

• Cooling: Air cooling

4. Protection Functions

• Over-voltage protection

• Over-current protection

• Short-circuit protection

• Leakage protection

• Over-temperature protection

• Lightning protection

5. Application Scenarios

• Residential villas, apartments, underground parking

• Communities, campuses, office compounds

• Small businesses, convenience stores, petrol station forecourts

6. Compliance

• Complies with Malaysia ST electrical safety standards

• Adapted to Malaysia 230V/50Hz single-phase utility grid

• Optimized for tropical high-temperature & high-humidity environment

The charging station adopts an integrated design, with the characteristics of small size and exquisite design. We can provide installation forms such as wall mounted or floor standing to meet the needs of different scenarios.

Safety: High protection, low noise design (<50dB), strong environmental adaptability.

Efficient charging: The use of upgraded modules helps improve charging efficiency and reduce energy loss. The maximum efficiency is as high as 97.5%, with low standby power consumption and reduced operating costs to improve operational efficiency.

Multiple protections: including overvoltage protection, overcurrent protection, short circuit protection, leakage protection, etc., to ensure the safety and reliability of the charging process.

Easy to operate: Equipped with a simple and easy to understand interface, users can conveniently perform charging operations.

Intelligent control: It can achieve precise control and monitoring of the charging process, such as automatically adjusting charging parameters based on battery status.

Status display: Clearly display relevant information about charging, such as charging voltage, current, battery level, charging time, etc., allowing users to keep track of the charging progress at any time.

Strong compatibility: It can adapt to various types of electric vehicles and meet the charging needs of different vehicle models.

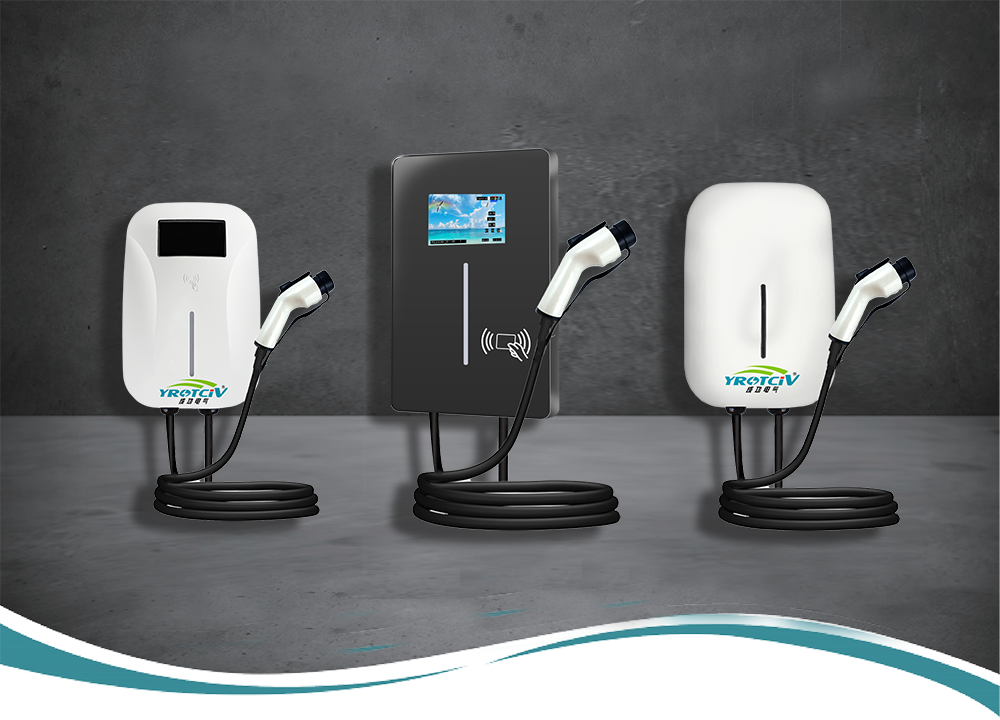

      7KW integrated AC charging station, upgraded appearance, stylish and simple, easy to install. Free choice of floor installation or wall mounted installation, providing safe, reliable, stable and efficient services for electric vehicles, suitable for scenarios such as villa courtyards, underground garages, schools, residential buildings, and unit courtyards.

1.Environmental parameters (optimization of high-temperature desert environment in the Middle East)

• Operating Temperature: -10°C ~ 75°C

• Storage Temperature: -20°C ~ 85°C

• Relative Humidity: 5%–95% RH (non‑condensing)

• Altitude: ≤ 2000 m (derate above 2000 m)

• Ingress Protection: IP54 (dust‑proof, splash‑proof, suitable for outdoor / desert)

2.Electrical parameters (Middle East power grid standard: 230V/400V, 50Hz)

• Nominal Input Voltage: 230 VAC ±15%

• Input Voltage Range: 195–437 VAC (supports single‑phase / three‑phase access)

• Frequency: 50 Hz

• Power Factor: ≥ 0.99

• THDi: ≤ 5%

• Output Voltage: 100–1000 VDC (continuously adjustable)

• Output Current: 32 A

• Output Power: 7 kW

• BMS Auxiliary Power: 12 VDC

• Peak Efficiency: 97.5%

• Noise Level: < 50 dB

• Low standby power consumption

3.Mechanical&Operation Parameters

• Installation: Floor‑standing / Wall‑mounted

• Connector Quantity: 1 gun

• Cable Length: Standard 5 m

• Start Methods: Mobile APP / Mini‑program, RFID card, local button, VIN

• Display: 4.3‑inch LCD screen

• Communication Interface: CAN

• Cooling: Air cooling (high‑temperature resistant)

4.Protection Functions

• Over‑voltage protection

• Over‑current protection

• Short‑circuit protection

• Leakage protection

• Over‑temperature protection

• Lightning / surge protection

• Reverse connection protection

5.Features (Middle East Oriented)

• High protection, strong adaptability to high temperature & dust

• Ultra‑high charging efficiency, low energy loss

• Safe & reliable, multiple protections

• Easy operation, clear status display

• Intelligent control & automatic parameter adjustment

• Wide compatibility with all EV models

6.Application Scenarios

• Villas, residential compounds, underground parking

• Hotels, malls, office buildings

• Government campuses, schools, public parking

• Desert stations, roadside service areas

7.Compliance Notes

• Compatible with GCC, SASO, IEC standards

• Optimized for Middle East high‑temperature, dry, dusty environment

• Suitable for 50 Hz grid systems across UAE, Saudi Arabia, Qatar, Kuwait, Oman, Bahrain

Safety: High protection, low noise design (<50dB), strong environmental adaptability.

Efficient charging: The use of upgraded modules helps improve charging efficiency and reduce energy loss. The maximum efficiency is as high as 97.5%, with low standby power consumption and reduced operating costs to improve operational efficiency.

Multiple protections: including overvoltage protection, overcurrent protection, short circuit protection, leakage protection, etc., to ensure the safety and reliability of the charging process.

Easy to operate: Equipped with a simple and easy to understand interface, users can conveniently perform charging operations.

Intelligent control: It can achieve precise control and monitoring of the charging process, such as automatically adjusting charging parameters based on battery status.

Status display: Clearly display relevant information about charging, such as charging voltage, current, battery level, charging time, etc., allowing users to keep track of the charging progress at any time.

Strong compatibility: It can adapt to various types of electric vehicles and meet the charging needs of different vehicle models.

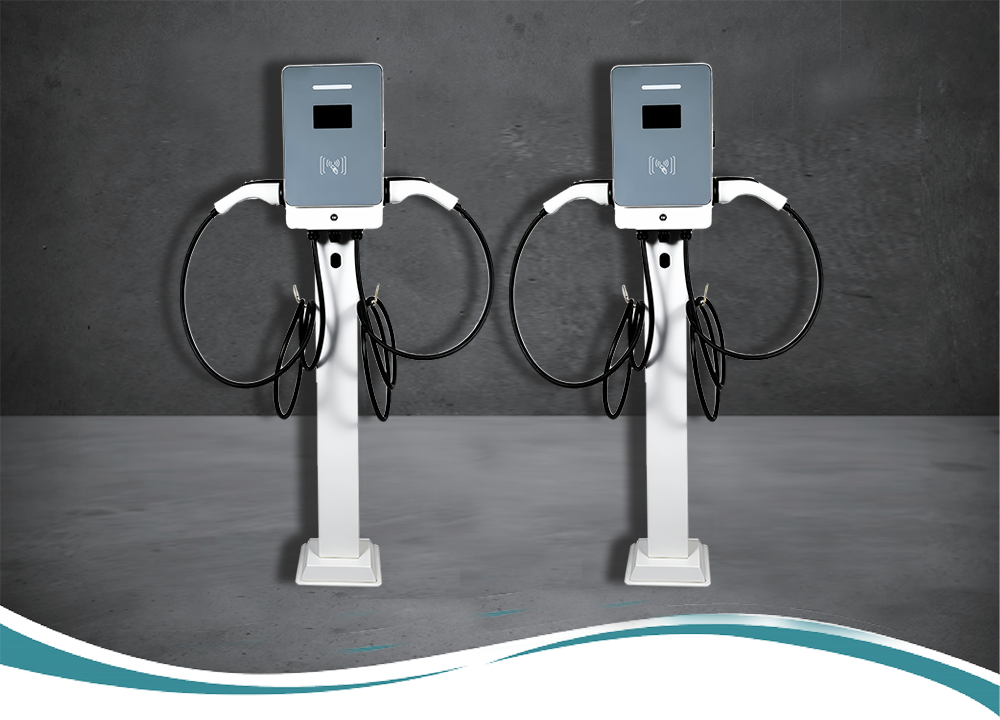

      7/14KW integrated AC charging station, upgraded appearance, stylish and simple, easy to install. Free choice of floor installation or wall mounted installation, providing safe, reliable, stable and efficient services for electric vehicles, suitable for scenarios such as villa courtyards, underground garages, schools, residential buildings, and unit courtyards.

1. Environmental Parameters (High-Temperature Desert Optimized)

• Operating Temperature: -10°C ~ 75°C

• Storage Temperature: -20°C ~ 85°C

• Relative Humidity: 5%–95% RH (non-condensing)

• Altitude: ≤ 2000 m (derate above 2000 m)

• Ingress Protection: IP54 (dustproof, splash-proof, desert-ready)

2. Electrical Parameters (Middle East Standard: 230V/400V, 50Hz)

• Nominal Input Voltage: 230 VAC ±15%

• Input Voltage Range: 195–437 VAC (single/three-phase compatible)

• Frequency: 50 Hz

• Power Factor: ≥ 0.99

• THDi: ≤ 5%

• Output Voltage: 100–1000 VDC (continuously adjustable)

• Output Current:

  • 7KW: 32 A

  • 14KW: 63 A

• Output Power: 7 kW / 14 kW

• BMS Auxiliary Power: 12 VDC

• Peak Efficiency: 97.5%

• Noise Level: < 50 dB

• Low standby power consumption

3. Mechanical & Operation Parameters

• Installation: Floor-standing / Wall-mounted

• Connector Quantity: 1–2 guns

• Cable Length: Standard 5 m

• Start Methods: Mobile APP, RFID card, local button, VIN

• Display: 4.3-inch LCD

• Communication: CAN

• Cooling: Air cooling (high-temperature resistant)

4. Protection Functions

• Over-voltage protection

• Over-current protection

• Short-circuit protection

• Leakage protection

• Over-temperature protection

• Lightning / surge protection

• Reverse connection protection

5. Features & Applications

• Designed for Middle East high-temperature, dry, dusty environment

• High efficiency, low energy loss, low operation cost

• Safe, reliable, intelligent BMS communication

• Wide compatibility with all EV models

• Scenarios: villas, apartments, parking, hotels, malls, public stations

6. Compliance

• Meets GCC, SASO, IEC standards

• Adapted to UAE, Saudi Arabia, Qatar, Kuwait, Oman, Bahrain grids

7. The 14kw AC all-in-one machine is a lithium power battery charging device designed and produced using internationally advanced soft switching technology according to the charging needs of electric vehicle equipment

Machine products. Equipped with a CAN communication interface, it communicates in real-time with the battery management system BMS and the flash charging backend monitoring system to optimize and reliably protect the charging of lithium power batteries.

Safety: High protection, low noise design (<50dB), strong environmental adaptability.

Efficient charging: The use of upgraded modules helps improve charging efficiency and reduce energy loss. The maximum efficiency is up to 97.5%. The device has low standby power consumption, reduces operating costs, and improves operational efficiency.

Multiple protections: including overvoltage protection, overcurrent protection, short circuit protection, leakage protection, etc., to ensure the safety and reliability of the charging process.

Easy to operate: Equipped with a simple and easy to understand interface, users can conveniently perform charging operations.

Intelligent control: It can achieve precise control and monitoring of the charging process, such as automatically adjusting charging parameters based on battery status.

Status display: Clearly display relevant information about charging, such as charging voltage, current, battery level, charging time, etc., allowing users to keep track of the charging progress at any time.

Strong compatibility: It can adapt to various types of electric vehicles and meet the charging needs of different vehicle models.

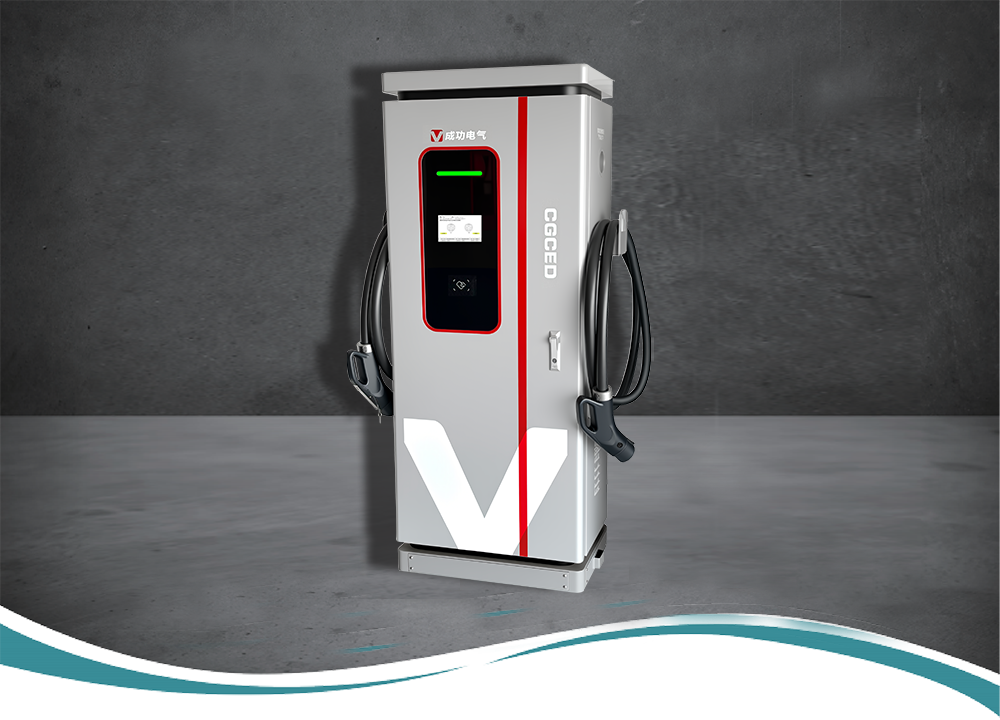

      20/30/40/60KW integrated DC charging station, upgraded appearance, stylish and simple, easy to install. Free choice of floor installation or wall mounted installation, providing safe, reliable, stable and efficient services for electric vehicles, suitable for scenarios such as villa courtyards, underground garages, schools, residential buildings, and unit courtyards.

1. Environmental Parameters

• Operating Temperature: -10°C ~ 75°C

• Storage Temperature: -20°C ~ 85°C

• Relative Humidity: 5%–95% RH (non-condensing)

• Altitude: ≤ 2000 m (derate above 2000 m)

• Ingress Protection: IP54

2. Electrical Parameters

• Nominal Input Voltage: 400 VAC ±15%

• Input Voltage Range: 320–460 VAC

• Frequency: 50 Hz

• Power Factor: ≥ 0.99

• THDi: ≤ 5%

• Output Voltage: 100–1000 VDC (continuously adjustable)

• Output Current: 0–67A / 0–100A / 0–133A / 0–200A

• Output Power: 20KW / 30KW / 40KW / 60KW

• BMS Auxiliary Power: 12 VDC

• Peak Efficiency: 97.5%

• Noise Level: < 50 dB

• Cooling Method: Air cooling (high-temperature resistant)

3. Mechanical & Operation Parameters

• Installation: Floor-standing / Wall-mounted

• Connector Quantity: 1 gun

• Cable Length: Standard 5 meters

• Start Methods: Mobile APP / Mini-program, RFID card, Local button, VIN

• Display: 4.3-inch LCD screen

• Communication Interface: CAN

4. Protection Functions

• Over-voltage protection

• Over-current protection

• Short-circuit protection

• Leakage protection

• Over-temperature protection

• Lightning / Surge protection

5. Product Features

• High protection level, strong adaptability to high temperature and dusty environment

• High charging efficiency, low energy loss and low standby power consumption

• Multiple safety protections, safe and reliable operation

• User-friendly interface and clear status display

• Intelligent control and automatic parameter adjustment

• Wide compatibility with various electric vehicle models

6. Application Scenarios

• Villas, residential apartments, underground parking

• Communities, campuses, office compounds

• Hotels, shopping malls, public parking lots

• Desert service areas, roadside fast charging stations

7. Compliance

• Compliant with GCC, SASO, IEC standards

• Suitable for UAE, Saudi Arabia, Qatar, Kuwait, Oman, Bahrain

• Optimized for Middle East high-temperature, dry and dusty environment

The charging station adopts an integrated design, with the characteristics of small size and exquisite design. We can provide installation forms such as wall mounted or floor standing to meet the needs of different scenarios.

Safety: High protection, low noise design (<50dB), strong environmental adaptability.

Efficient charging: The use of upgraded modules helps improve charging efficiency and reduce energy loss. The maximum efficiency is as high as 97.5%, with low standby power consumption and reduced operating costs to improve operational efficiency.

Multiple protections: including overvoltage protection, overcurrent protection, short circuit protection, leakage protection, etc., to ensure the safety and reliability of the charging process.

Easy to operate: Equipped with a simple and easy to understand interface, users can conveniently perform charging operations.

Intelligent control: It can achieve precise control and monitoring of the charging process, such as automatically adjusting charging parameters based on battery status.

Status display: Clearly display relevant information about charging, such as charging voltage, current, battery level, charging time, etc., allowing users to keep track of the charging progress at any time.

Strong compatibility: It can adapt to various types of electric vehicles and meet the charging needs of different vehicle models.

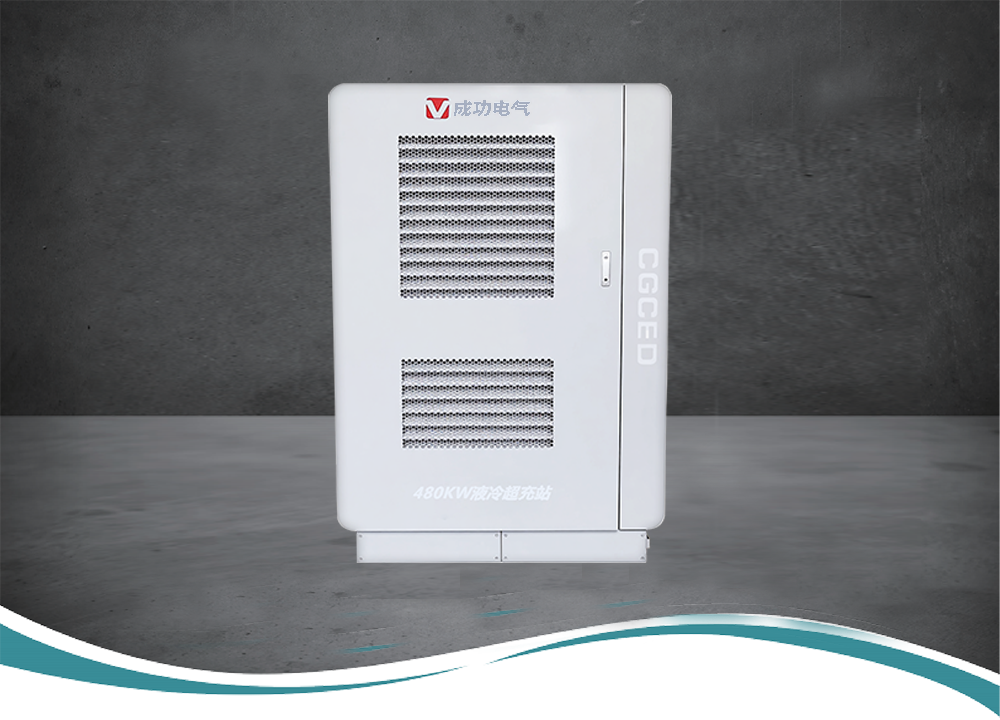

      Equipped with an independent air duct power module and adopting a three-dimensional cabinet design concept, it is compatible with ultra fast charging and does not require an external heat sink. It has the characteristics of compact structure, ultra-low frequency, and no need for frequent cleaning and maintenance of the whole machine.

This series of charging piles adopts unique technology and design concepts, which are different from traditional products. For example, with advanced intelligent control systems, it performs well in charging efficiency, compatibility, and other aspects. It can perfectly match with various electric vehicle models and achieve wide applicability. It has good protective performance and durability, and can operate stably for a long time in various complex environments.

1. Environmental Specifications

• Operating Temperature: -10°C ~ 75°C

• Storage Temperature: -20°C ~ 85°C

• Relative Humidity: 5% – 95% RH (non-condensing)

• Altitude: ≤ 2000 m (derate above 2000 m)

• Ingress Protection: IP54

2. Electrical Specifications

• Nominal Input Voltage: 400 VAC ±15%

• Input Voltage Range: 320 – 460 VAC

• Frequency: 50 Hz

• Power Factor: ≥ 0.99

• THDi: ≤ 5%

• Output Voltage: 100 – 1000 VDC (continuously adjustable)

• Output Current: 0 – 250 A (all models)

• Output Power: 120KW / 160KW / 240KW

• BMS Auxiliary Power: 12 VDC

• Peak Efficiency: 97.5%

• Noise Level: < 50 dB

• Cooling: Air cooling

3. Mechanical & Operation

• Installation: Floor-standing / Wall-mounted

• Connector Quantity: 2 guns

• Cable Length: Standard 5 meters

• Start Methods: Mobile APP, RFID card, local button, VIN

• Display: 7-inch LCD screen

• Communication Interface: CAN

4. Protection Functions

• Over-voltage protection

• Over-current protection

• Short-circuit protection

• Leakage protection

• Over-temperature protection

• Surge / lightning protection

5. Product Features

• Designed for high-temperature, dry, dusty Middle East environments

• High efficiency, low energy loss, low standby power consumption

• Advanced soft-switching technology

• Independent air duct power module

• Compact structure, ultra-quiet, maintenance-free

• Intelligent control & automatic parameter adjustment

• Real-time communication with BMS and cloud monitoring system

• Wide compatibility with all EV models

• Ultra-fast charging supported

6. Compliance

• Complies with GCC, SASO, IEC standards

• Suitable for UAE, KSA, Qatar, Kuwait, Oman, Bahrain

120, 160, and 240kw DC all-in-one machines are lithium powered devices designed and produced using internationally advanced soft switching technology according to the charging needs of electric vehicle equipment

Battery charger products. Equipped with a CAN communication interface, it communicates in real-time with the battery management system BMS and the flash charging backend monitoring system to optimize and reliably protect the charging of lithium power batteries.

Safety: High protection, low noise design (<50dB), strong environmental adaptability.

Efficient charging: The use of upgraded modules helps improve charging efficiency and reduce energy loss. The maximum efficiency is up to 97.5%. The device has low standby power consumption, reduces operating costs, and improves operational efficiency.

Multiple protections: including overvoltage protection, overcurrent protection, short circuit protection, leakage protection, etc., to ensure the safety and reliability of the charging process.

Easy to operate: Equipped with a simple and easy to understand interface, users can conveniently perform charging operations.

Intelligent control: It can achieve precise control and monitoring of the charging process, such as automatically adjusting charging parameters based on battery status.

Status display: Clearly display relevant information about charging, such as charging voltage, current, battery level, charging time, etc., allowing users to keep track of the charging progress at any time.

Strong compatibility: It can adapt to various types of electric vehicles and meet the charging needs of different vehicle models.

       Intelligent charging pile is a high-performance charging solution designed specifically for modern electric vehicles. This series of products offers multiple voltage options from 360KW to 2400KW, designed to meet the charging needs of different vehicle models. Its unique design allows a single charging pile to connect up to 20 charging guns, effectively supporting multiple cars in the field to charge simultaneously, greatly improving charging efficiency and shortening waiting time.

This product adopts advanced liquid cooling technology to ensure system stability under high-intensity use, and significantly reduces operating noise, with a sound level below 30dB during operation, providing users with a quiet and comfortable charging environment. In addition, the maximum efficiency of the charging stack can reach 97.5%, which means that the losses during energy conversion are minimized, making it economical and environmentally friendly.

      Scope of application: Electric heavy-duty trucks, mining dump trucks, electric buses, construction machinery vehicles, electric ships

360–2400KW Intelligent Liquid-Cooled DC Charging Stack

Middle East Adapted English Specifications

1. Environmental Parameters

• Operating Temperature: -10°C ~ 75°C

• Storage Temperature: -40°C ~ 85°C

• Relative Humidity: 5% – 95% RH (non-condensing)

• Altitude: ≤ 2000 m (derate above 2000 m)

• Ingress Protection: IP54

2. Electrical Parameters

• Nominal Input Voltage: 400 VAC ±15%

• Input Voltage Range: 320 – 460 VAC

• Frequency: 50 Hz

• Power Factor: ≥ 0.99

• THDi: ≤ 5%

• Output Voltage: 100 – 1000 VDC (continuously adjustable)

• Standard Fast Charging Output Current: 0 – 250 A

• Liquid-Cooled Ultra-Fast Charging Current: 0 – 1200 A

• Output Power: 360KW / 480KW / 600KW / 960KW / 1280KW / 2400KW

• BMS Auxiliary Power: 12 VDC

• Peak Efficiency: 97.5%

• Noise Level: < 30 dB (liquid-cooled)

• Cooling Mode: Air cooling / Liquid cooling

3. Mechanical & Operation Parameters

• Cabinet Style:

  • 360KW – 600KW: Same housing

  • 960KW – 1280KW: Same housing

  • 2400KW: Independent housing

• Installation: Floor-standing

• Charging Terminals: Standard fast charging + Liquid-cooled ultra-fast charging

• Start Methods: Mobile APP, RFID card, local button, VIN

• Display: 7-inch LCD screen

• Communication Interface: CAN

4. Protection Functions

• Over-voltage protection

• Over-current protection

• Short-circuit protection

• Leakage protection

• Over-temperature protection

• Surge / lightning protection

• Reverse connection protection

5. Product Features

• Full liquid-cooled technology, high reliability, long service life

• Fully sealed module: dustproof, salt-spray resistant, anti-condensation

• Ultra-low noise: < 30 dB during operation

• High efficiency, low standby power consumption, reduced OPEX

• Intelligent control & automatic parameter adjustment

• Real-time status display (voltage, current, SOC, time)

• High compatibility, power upward compatible

• Up to 20 charging guns per stack

• Optimized for high-temperature, dusty, salt-spray Middle East environment

6. Application Vehicles

• Mining dump trucks

• Engineering machinery

• Electric buses

• Electric ships

• Electric heavy trucks

7. Compliance

• Complies with GCC, SASO, IEC standards

• Suitable for UAE, KSA, Qatar, Kuwait, Oman, Bahrain

The successful electric liquid cooled DC charging stack system adopts full liquid cooling technology, with the core component being the liquid cooled charging module. The product has high reliability, long lifespan, and low noise,

Reduce the failure rate of rectifier cabinet modules and lower maintenance costs.

High protection: fully enclosed module design, dustproof, anti salt spray, anti condensation

Ultra low frequency: Liquid cooled heat dissipation, module ultra-low frequency (<30dB), strong environmental adaptability.

High efficiency: The third-generation charging station design helps improve charging efficiency, with a maximum efficiency of up to 97.5%. The device has low standby power consumption, reduces operating costs, and enhances operational efficiency.

Multiple protections: including overvoltage protection, overcurrent protection, short circuit protection, leakage protection, etc., to ensure the safety and reliability of the charging process.

Easy to operate: Equipped with a simple and easy to understand interface, users can conveniently perform charging operations.

Intelligent control: It can achieve precise control and monitoring of the charging process, such as automatically adjusting charging parameters based on battery status.

Status display: Clearly display relevant information about charging, such as charging voltage, current, battery level, charging time, etc., allowing users to keep track of the charging progress at any time.

Strong compatibility: Same size power up compatibility, compatible with different functional module sizes, can adapt to various types of electric vehicles, and meet the charging needs of different vehicle models.
